P-ION Sedona Programmable Controller

P-ION series products are universal programmable controllers that can be used to manage a variety of building systems including heating, ventilation, air-conditioning (HVAC) systems. Basic and advanced control strategies can be programmed by Sedona Framework ™ for optimized performance.

High I/O Density

Installer Friendly

Certified Sedona

IP Controller

Rich Feature Set

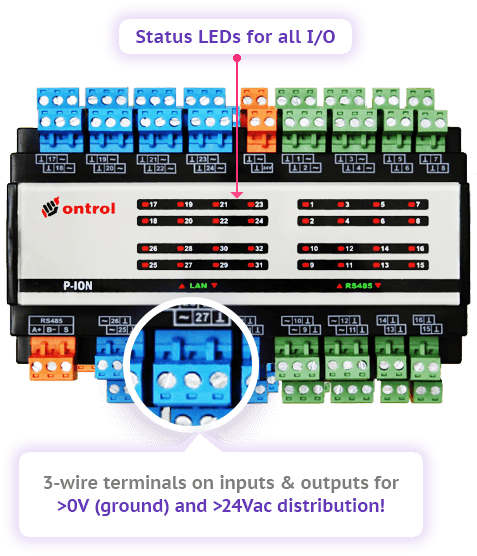

Universal Inputs

All universal inputs can be configured as analog or voltage-free digital inputs.

Analog inputs are optimized for resistive type temperature sensors (e.g. PT1000) and 0-10 VDC devices. 13 bit A/D converters assure high-resolution measurements. For 4-20 mA input signals, external 500 Ohm resistors are required.

All inputs are protected against short circuits to the ground and against direct connection up to 50 VAC.

Optional Relay Board Extension

Two relay modules (RK-4) can be connected by a ribbon cable to provide a total of 8 additional relay outputs at 10A. Further RK4 relay modules can be driven by flex-outputs to convert analog outputs to relay outputs.

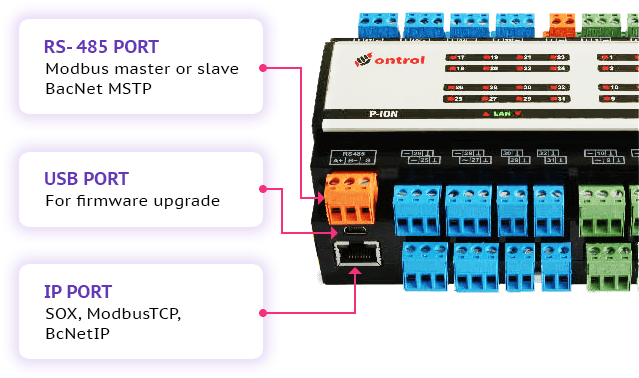

Ports

The P-ION can communicate over TCP/IP and/or RS485 busses.

Flex Points

All flex I/O points can be configured as analog output, digital input or pulse input.

Analog outputs are used to control 0(2)-10V valve and damper actuators, humidifiers, frequency drives, etc. Convertor relay boards can be used to drive on/offloads.

All outputs are protected against short circuits to the ground and against direct connection up to 50 VAC.

Sedona Framework™

Sedona Framework™

Developed by Tridium, the Sedona Framework ™ is the industry’s first, open-source development framework that provides a complete software platform for developing, deploying, integrating, and managing pervasive device applications. It brings the power of programmable control and the Internet down to edge devices. The Sedona Framework distributes decision making control and manageability to any device and brings intelligence and connectivity to the network edge and back.

  • General: 32-bit microcontroller, 13-bit A/D converter flash memory
  • Nominal Voltage: 24 VAC +%10-%15, 50/60Hz
  • Power Consumption: 6 VA
  • Universal Inputs:
    0(2)-10 VDC
    0(4)-20 mA (500 Ohm resistor required)
    PT1000
    NTC 10K3A1
    Voltage-free contact
    Resistance (0-330 kOhm)
  • Flex Points:
    Voltage output 0(2)-10 Vdc, 2 mA max

    Digital input (voltage-free contact)
    Pulse input (max 20 Hz, 50% duty cycle) (count stored in non-volatile memory)

  • RS485 Connection: Modbus RTU
  • RJ45 Ethernet Connection:
    Ethernet 10/100 Base-T
    Supports: IP, TCP, UDP, HTTP, Sedona Sox, Modbus TCP, BACnet IP
  • Dimensions (mm): 157 x 125 x 60 (including terminals)
  • Mounting: 35 mm standard DIN rail mount
  • Operating Temperature Range: 0..50 °C (32..122 °F)
  • Non-operating Temperature Range: -25..+75 °C (-13..+167 °F)
  • Humidity Range: 5…95 % rh, non condensing
  • Humidity Range: 5…95 % rh, non condensing
  • Weight: 630 gr (Gross 750 gr)
  • Degree of Protection: IP20, EN 60529

R-ION Programmable Touch-Screen Sedona Controller

R-ION series products are programmable room controllers ideal for managing a wide range of individual building products such as fan-coil units and VAV boxes.

Extremely flexible customization options are available thanks to configurable color touchscreen, full programmability, and custom logo placement options.

In addition to basic fan-speed and temperature settings, lighting controls can easily be integrated, as well as custom application-specific functions (e.g. Do Not Disturb /Makeup Room buttons for hotel rooms)

3.5” Resistive Color
Touch-Screen

Freely
Programmable

Fully Customizable
Graphics

WIFI
Option

R-ION controllers support various industry-standard protocols simultaneously. The main supervisory system communication (Port 1) is serial RS485 or wireless IP depending on the basic version:

  • WIFI versions support Sox protocol and BACnet IP.

  • Serial versions support BACnet MSTP (as a slave) and Modbus RTU in either master or slave configuration.

Optionally, one or more of the following auxiliary communication ports may be available:

  • Second RS485 port ( Modbus & DMX drivers available)

  • Belimo MP-Bus port

  • DALI (Digital Addressable Lighting Interface) port

The two-piece solution greatly simplifies installation on the wall-unit side, as the IO module can be located close to the terminal unit being controlled, with only comms wiring into the wall unit.

  • 3.5” resistive color touch-screen

  • Freely programmable

  • Fully customizable graphics

  • Powered by Sedona Framework

  • WIFI option

  • Belimo MP-Bus option

  • Dali (Digital Addressable Lighting Interface) option

  • DMX driver available

  • Low profile, only 10.5 mm thick

  • Optional Input/output modules optimized for terminal units (e.g. Fan-coil, VAV…)

RK4 Relay Module

RK4 is intended for use with various Ontrol controllers, or other BMS systems, to enable on/off switching of loads. It provides 4 independently switchable relays. For each relay, both normally-open and normally-closed contacts are available for wiring. LEDs indicate status of the relays and supply voltage.

RK4 has two modes of operation.

Analog Control

A 0-10 V input is provided for controlling each relay independently. In this mode, the RK4 is a general-purpose analog-to-digital converter that can be used with any BMS controller. See specifications for switching voltages.

Ribbon-Cable Connection

When connected to a compatible Ontrol controller via the ribbon cable connection, the relays are directly controlled by the attached controller. In this case, analog input terminals are not used.

Ribbon cable connectors are on the bottom of the module, allowing the cable to lie flat in the DIN rail. Two connectors are provided to allow daisy-chain connection of multiple RK4 modules:

P-ION

Max 2 relay modules for up to 8 relay outputs

R/MIO

Max 1 relay modules for up to 4 relay outputs

R/TIO

Max 2 relay modules for up to 8 relay outputs

M/TIO

Max 2 relay modules for up to 8 relay outputs

Specifications

Specifications

  • Power Supply: 24 VAC ±%10, 50/60Hz or 24Vdc ±%10

  • Power Consumption: 2W

  • Input Signals: 0-10 Vdc int 33 KOhm impedance

  • Output Contacts: 10A at 230Vac (resistive load)

  • LED Indication: 4x relay status Power supply present

  • Connections: Plug-in terminals, max 1 x 2.5 mm²

  • Operating Temperature Range: -10..50 °C (14..122 °F)

  • Non-operating Temperature Range: -25..+75 °C (-13..+167 °F)

  • Humidity Range: 5…95 % RH, non-condensing

  • Weight: 184 gr

  • Dimensions (with terminals): 114.80 x 69.60 x 56.10 mm (4.52 x 2.74 x 2.20″)

  • Mounting: 35mm standard DIN rail mount

  • Degree of Protection: IP20, EN 60529

Modbus Controllers

M/TIO modules are general purpose input/output modules with industry-standard, open-protocol Modbus RTU communications.

Both modules have the same I/O configuration, the only difference is the communications protocol.

These modules also host a battery backed-up real-time-clock. Therefore, time schedules can be implemented directly on the device, fully configurable locally from the connected R-ION or remotely from a supervisory system.

  • M/TIO Input/output module (Modbus RTU comms – RS485)

  • 8 Analog in

  • 2 triac out (on/off, PWM or floating)

  • 4 analog out (0-10Vdc)

  • 3-speed fan relays (can be used individually)

  • 1 high-power relay (10A)

  • 1 additional relay (5A)

  • 24 Vac supply

Universal Inputs

8 inputs are provided, which can be configured as follows:

Input Pt1000 NTC 0-10 V Contact
In1 – Yes – Yes
In2 – Yes – Yes
In3 – Yes – Yes
In4 – Yes – Yes
In5 Yes – – Yes
In6 Yes – Yes Yes
In7 Yes – Yes Yes
In8 Yes – Yes Yes
Versions Supply Comms
M/TIO-U 120 Vac Modbus RTU Slave
M/TIO-H 230 Vac Modbus RTU Slave
M/TIO-L 24 Vac Modbus RTU Slave

Relay Outputs

Five relay outputs are provided, each with 5A rating. Triac

Outputs

2 Triac outputs are provided with flexible configuration options, allowing control of on/off thermoelectric (PWM) or floating actuators or relays. The triacs can be independently configured to control different loads. However, due to internal connections, all loads must be supplied from the same AC voltage. Floating (three-position) configuration requires the use of both triacs.

Modulating Outputs

Four 0-10VDC analog outputs are provided for controlling modulating valve or damper actuators. Two of these points can be configured to function as digital inputs.

Expansion Port

Upto two RK4 relay modules can be connected to the device with a ribbon cable, providing up to a total of 8 additional relay outputs.

Real-Time-Clock

4 time-schedules can each be independently associated with a relay output through configuration parameters. Each schedule allows 28 sets of start/stop times per week.

Universal Inputs

8 inputs are provided, which can be configured as follows:

Input Pt1000 NTC 0-10 V Contact
In1 – Yes – Yes
In2 – Yes – Yes
In3 – Yes – Yes
In4 – Yes – Yes
In5 Yes – – Yes
In6 Yes – Yes Yes
In7 Yes – Yes Yes
In8 Yes – Yes Yes
Versions Supply Comms
M/TIO-U 120 Vac Modbus RTU Slave
M/TIO-H 230 Vac Modbus RTU Slave
M/TIO-L 24 Vac Modbus RTU Slave

Relay Outputs

Five relay outputs are provided, each with 5A rating. Triac

Outputs

2 Triac outputs are provided with flexible configuration options, allowing control of on/off thermoelectric (PWM) or floating actuators or relays. The triacs can be independently configured to control different loads. However, due to internal connections, all loads must be supplied from the same AC voltage. Floating (three-position) configuration requires the use of both triacs.

Modulating Outputs

Four 0-10VDC analog outputs are provided for controlling modulating valve or damper actuators. Two of these points can be configured to function as digital inputs.

Expansion Port

Upto two RK4 relay modules can be connected to the device with a ribbon cable, providing up to a total of 8 additional relay outputs.

Real-Time-Clock

4 time-schedules can each be independently associated with a relay output through configuration parameters. Each schedule allows 28 sets of start/stop times per week.

P-ION SEDONA
CONTROLLER

RK-4 RELAY
MODULE

R-MIO
CONTROLLER

R-ION
TOUCH SCREEN
